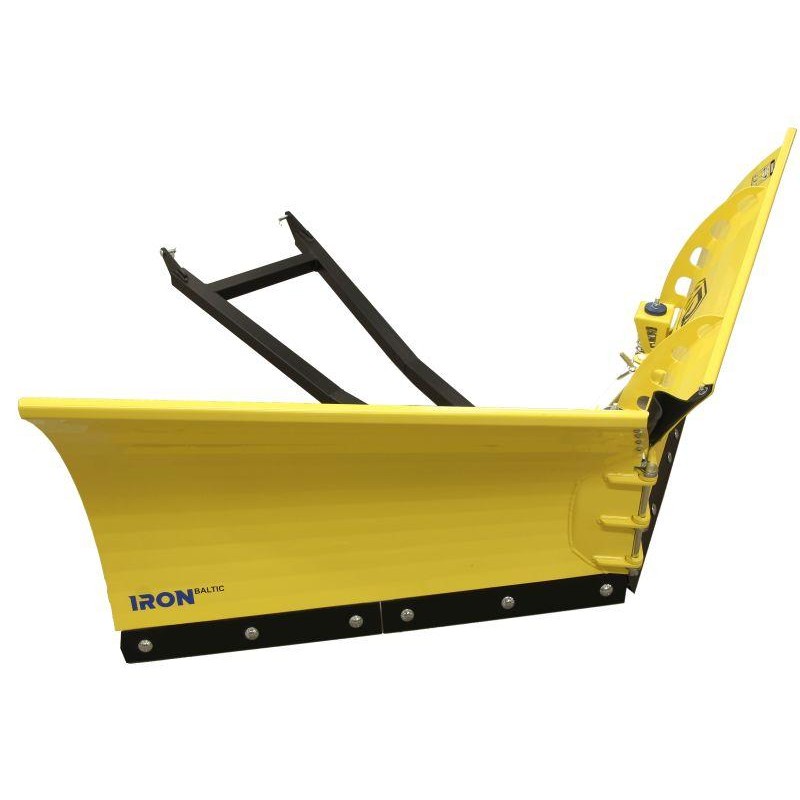

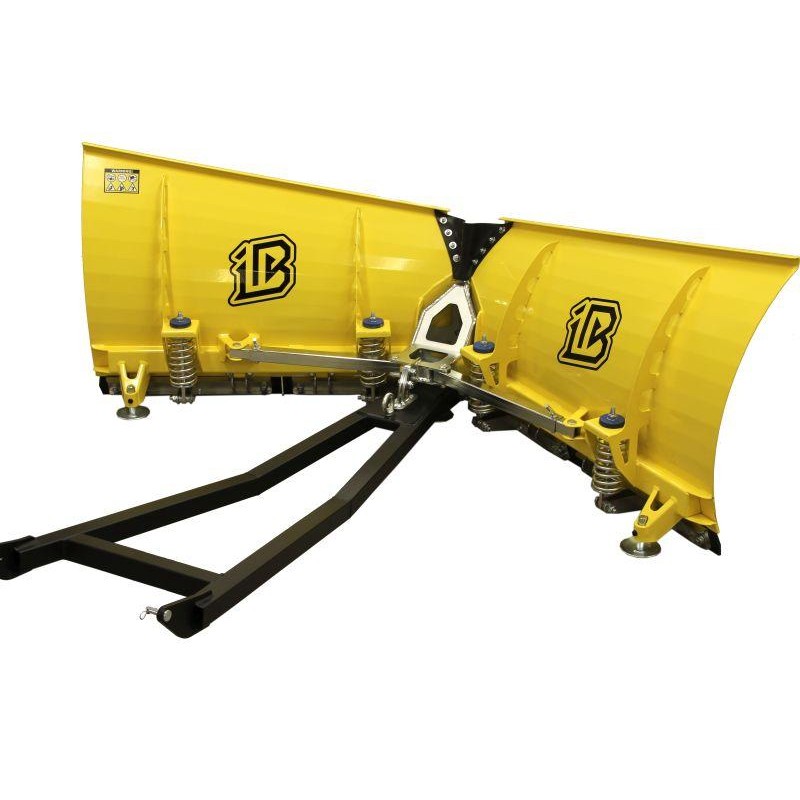

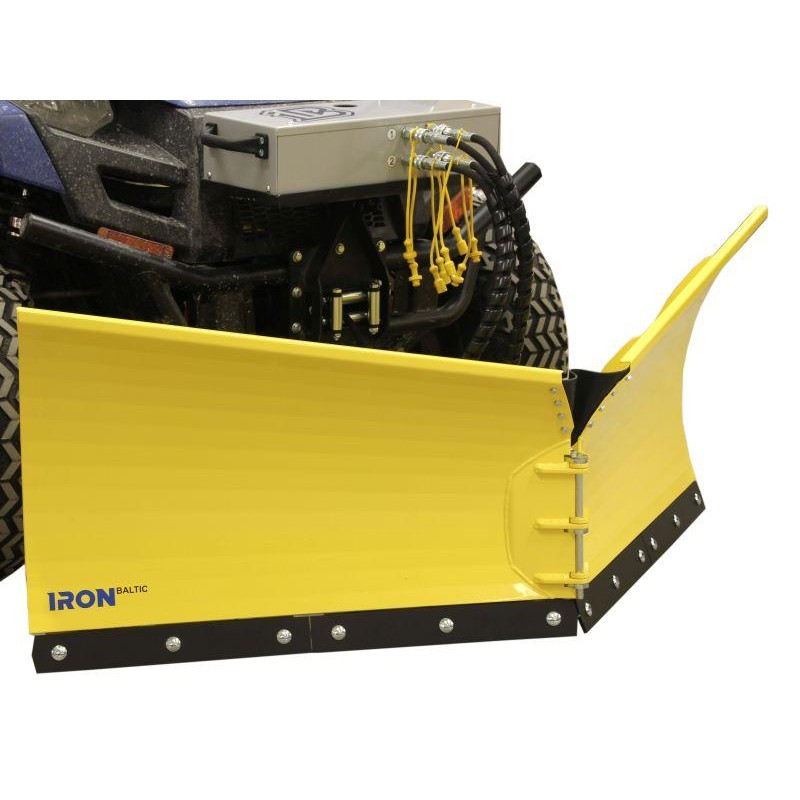

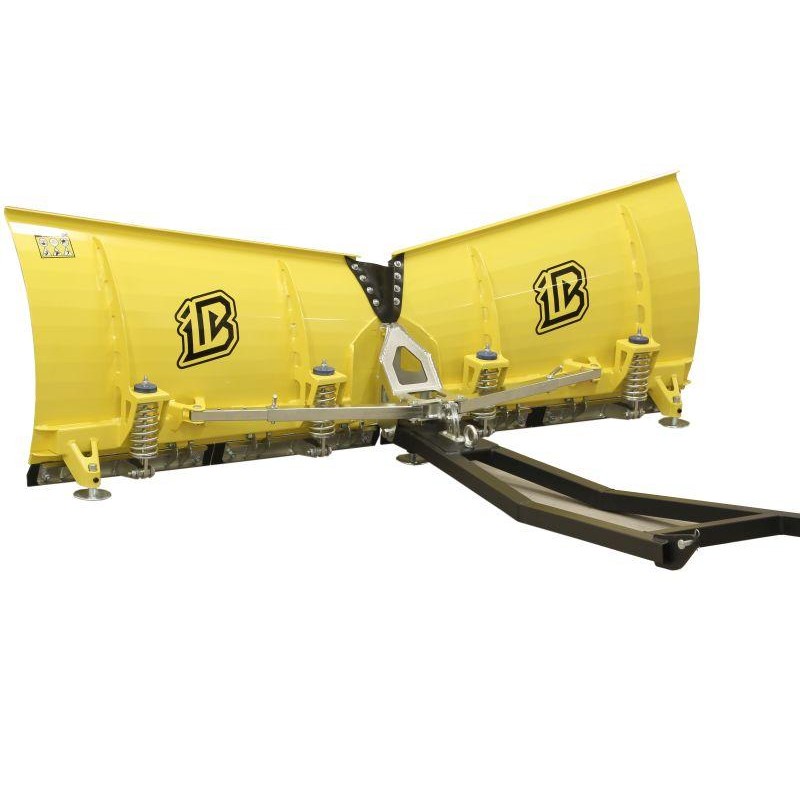

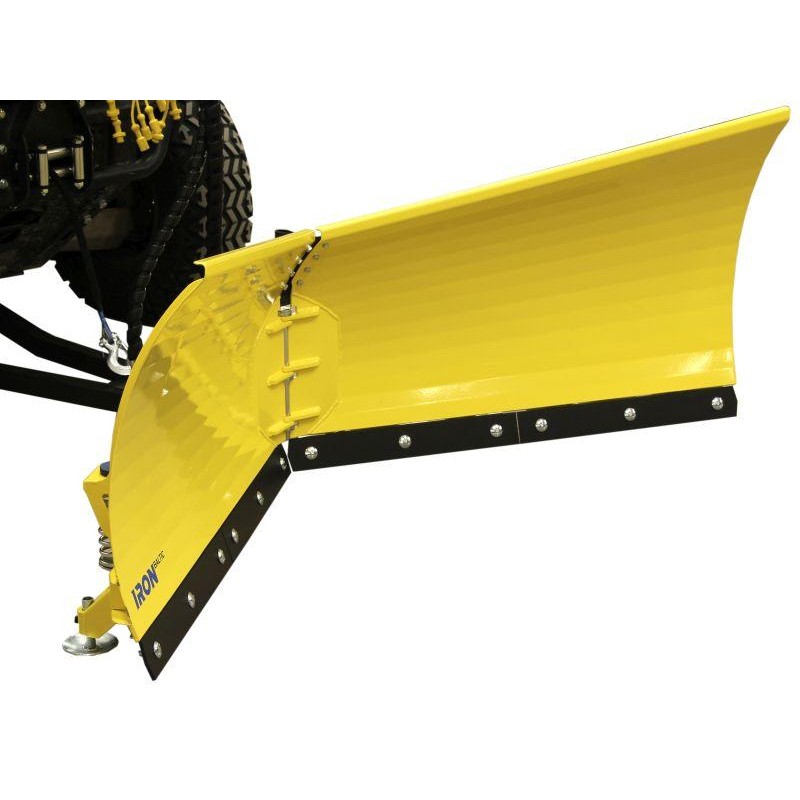

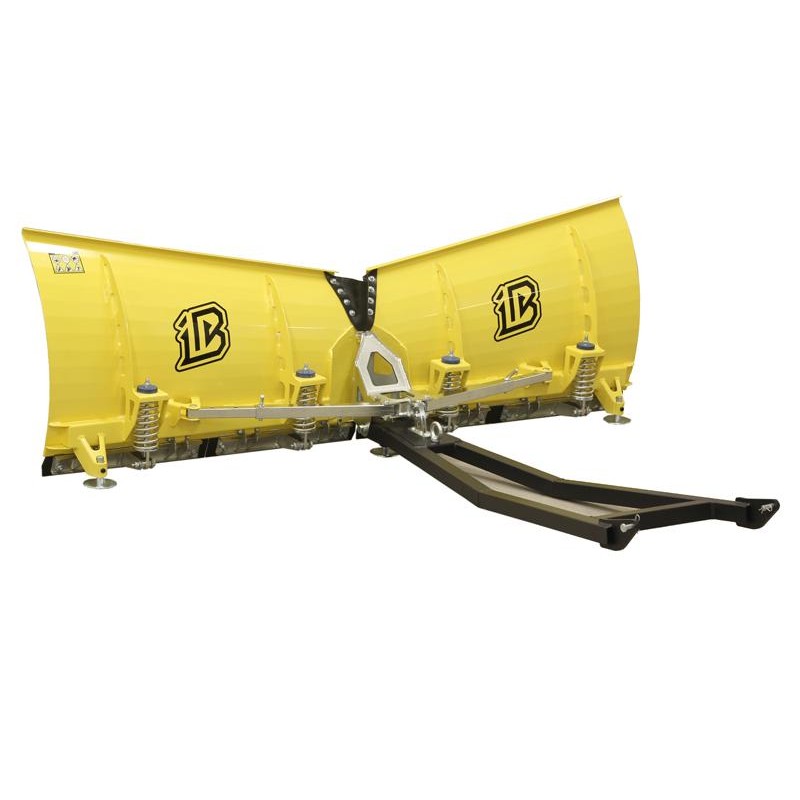

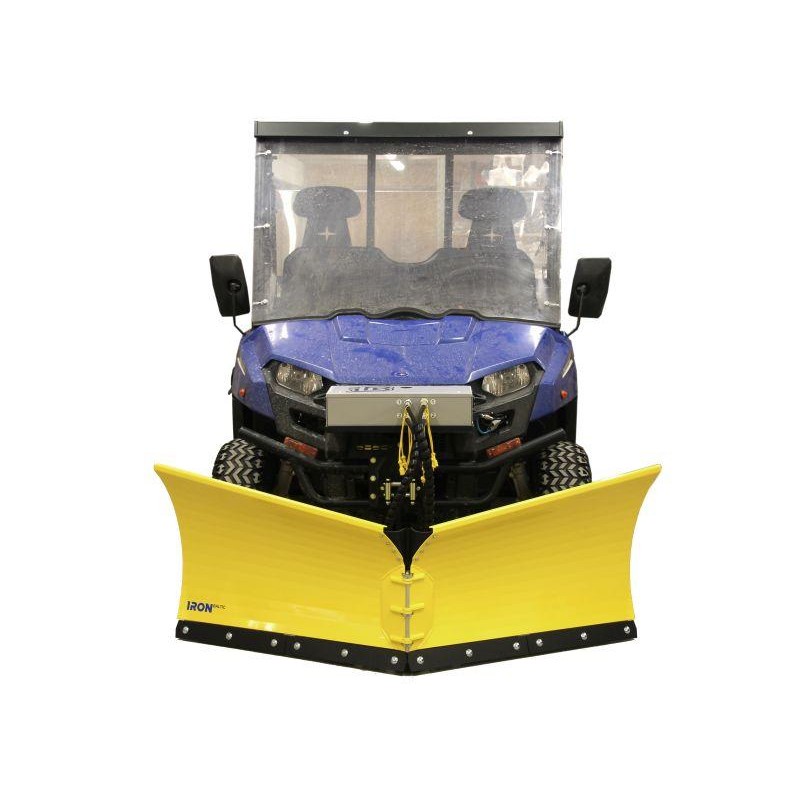

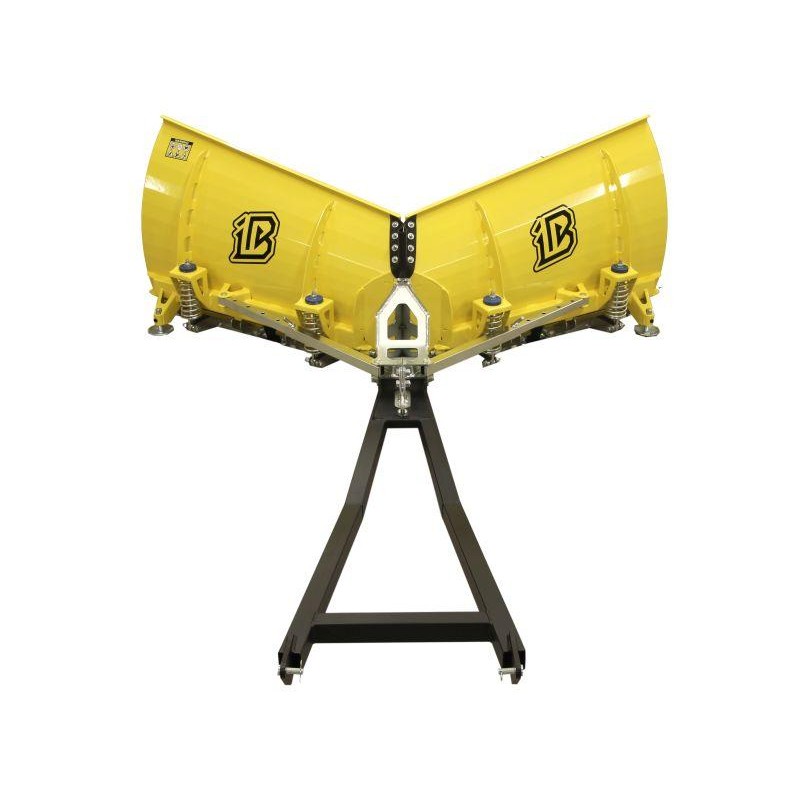

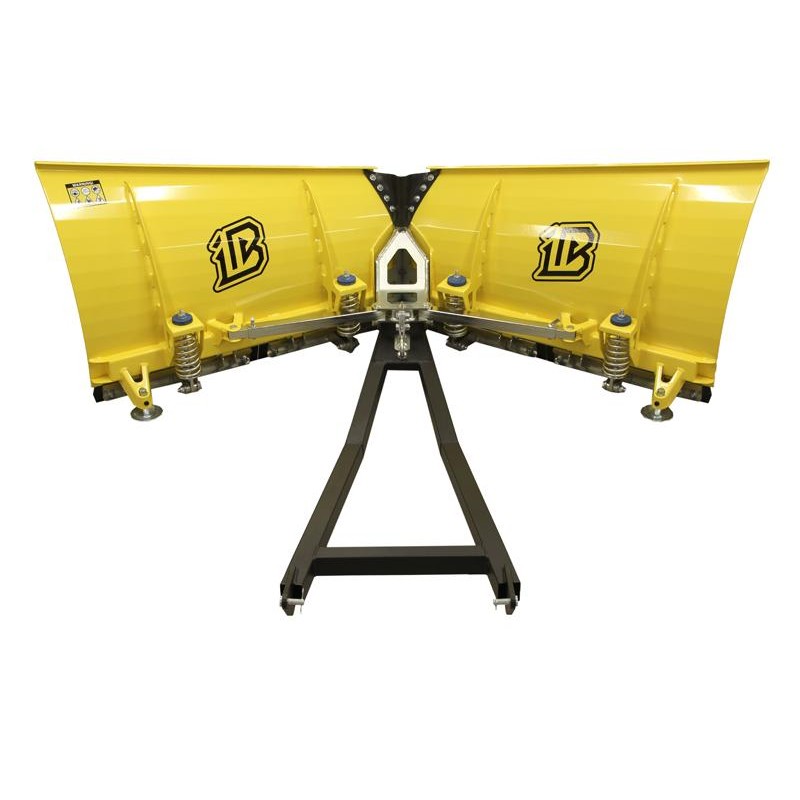

Snow Plow V-Plow 1500 Mid Mount Kit V 150 cm ATV SSV

Snow Plow V-Plow 1500 Mid Mount Kit  V 150 cm ATV SSV

Material:Steel
Surface:Powder coated
Working width:1800 mm
Weight:93,5 kg
Packed dimensions:1550 x 650 x 650 mm

Heavy duty steel construction! Suitable for cleaning snow or pushing sand, dirt, gravel, etc.

Model specific mounting kit needed for installing the push tubes (see section mid-mount adapters). Snow Plow Mounting Kit

Quick & easy plow turning / side angles working position adjustment via hydraulic cylinders.
Working width (track) in max reversed V position: 1380 mm

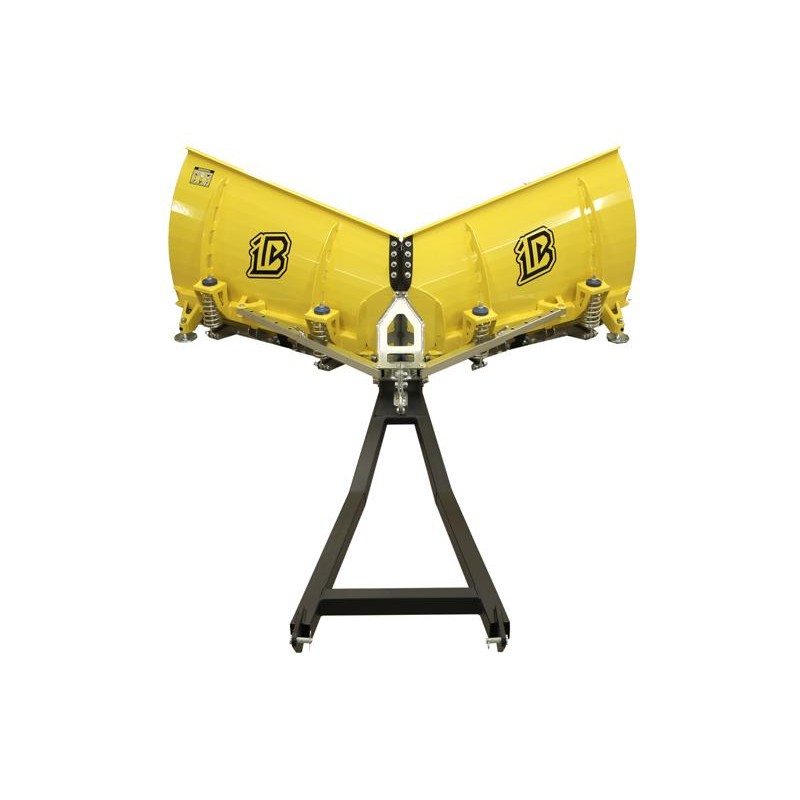

Working width (track) in max V position: 1500 mm
Working height adjustment via sliding shoes.
Blades dampening springs ensure the plow moves over fixed obstacles without damaging the plow or the vehicle.
Curved design provides better snow and dirt roll-off at any angle.
Raising and lowering using the vehicle´s winch.
Also available for vehicles with fitted tracks.
Complete, illustrated user guide & CE safety instructions included.
Model specific mounting kit needed for installation (see section mid-mount adapters).
Mounting brackets 71.7000 and 71.7030 needed for fitting Polaris Ranger models.
Packed into transportation safe wooden crate (stackable)
