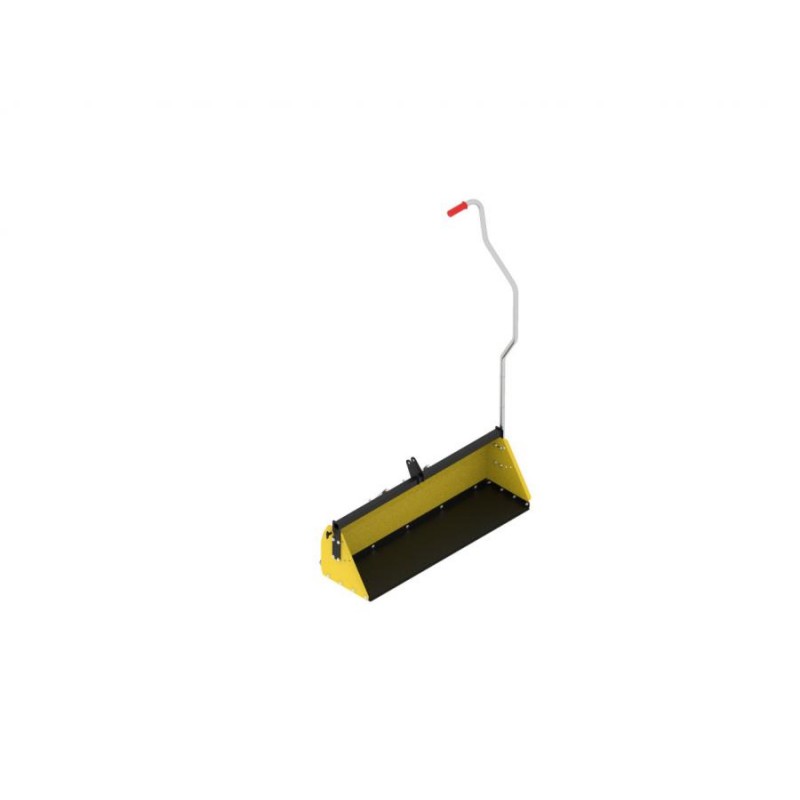

PLOW BUCKET 1280mm ATV SSV UTV

PLOW BUCKET 1280mm ATV SSV UTV

Material
Steel
Width
1280mm
Volume
108 L
Capacity
72.5 kg
Weight
58 kg
Surface
Powdercoated, black

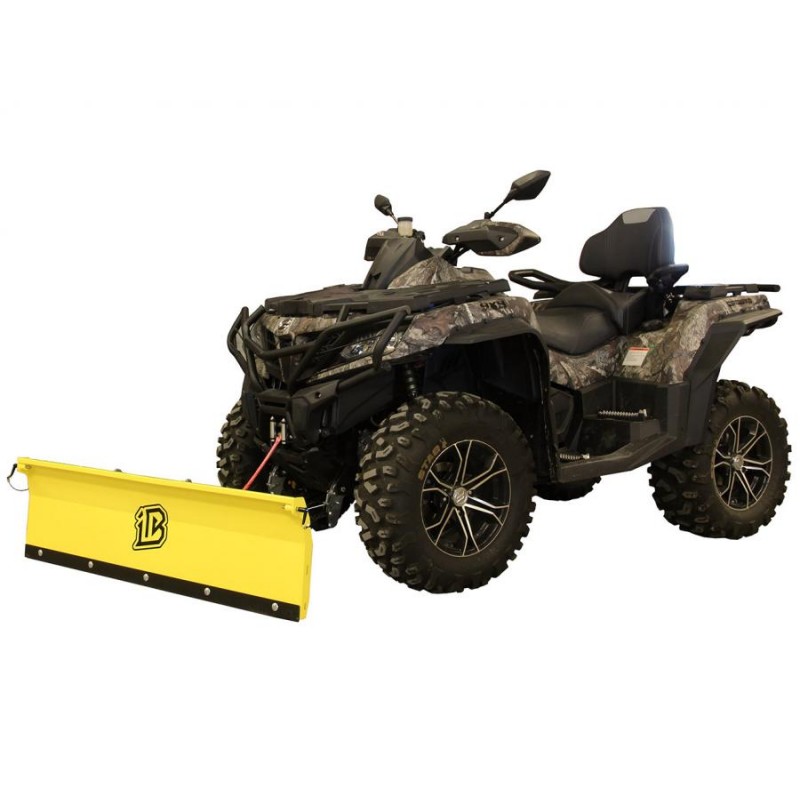

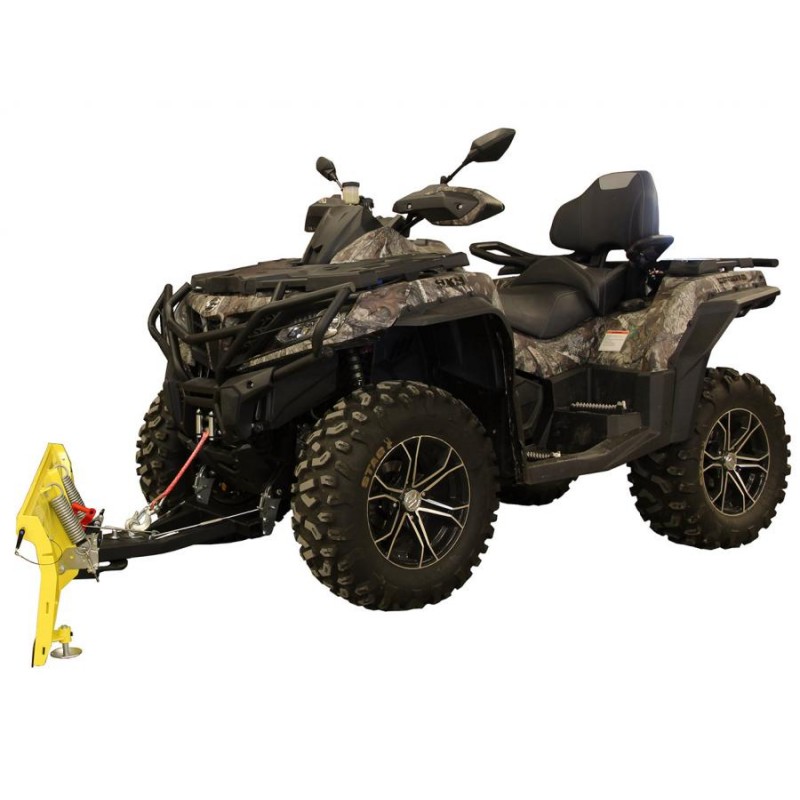

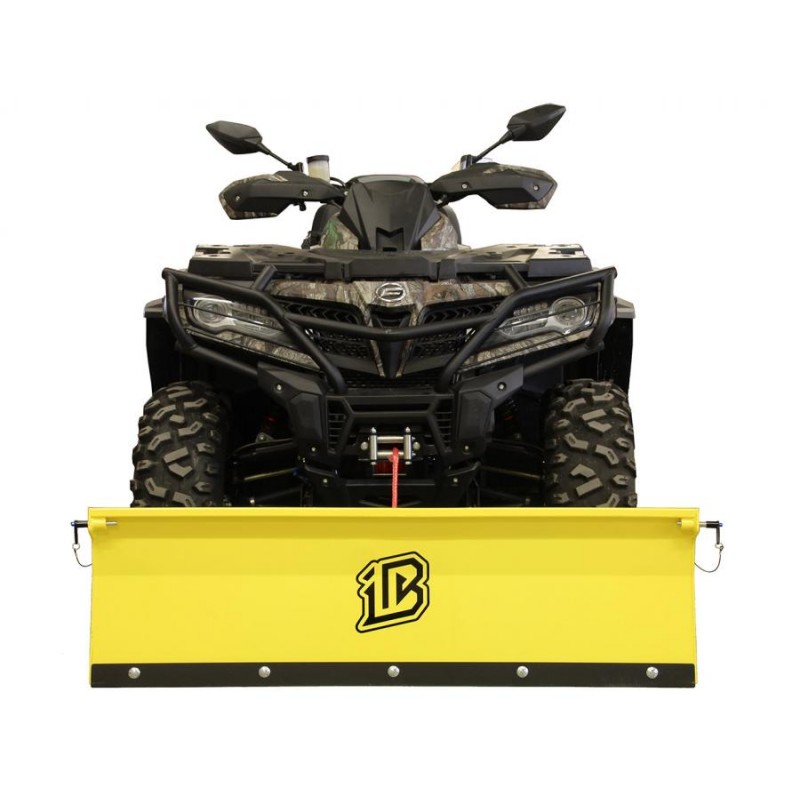

Efficient multi purpose 2-in-1 bucket kit - can be used as a normal bucket as well as a dozer blade / snow plow.

Product kit consists of the following parts:
20.6200 Front mount quick attach push tube (regular width)

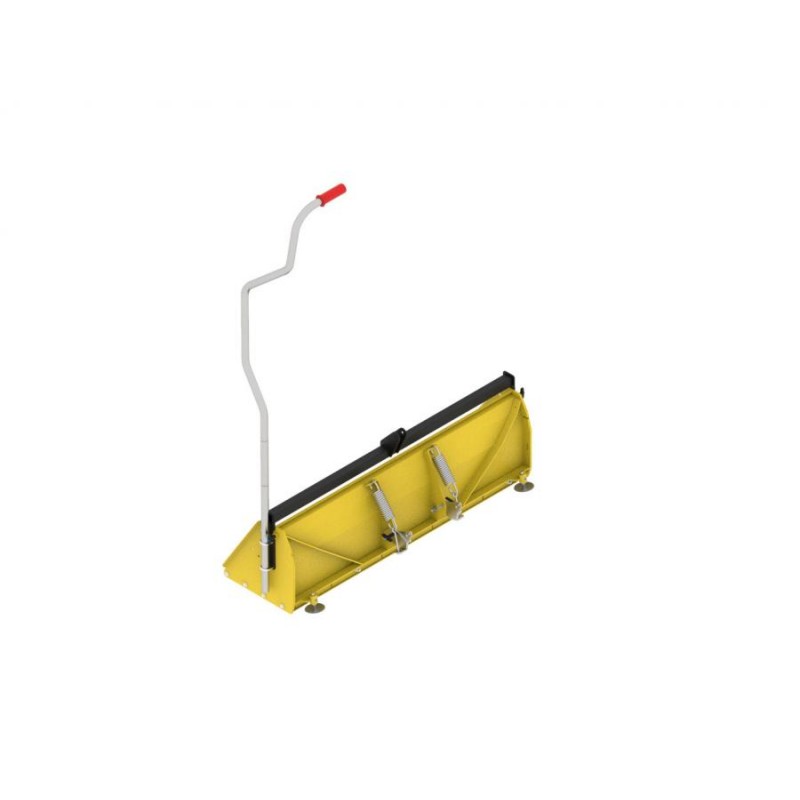

20.7600 Modular Plow Bucket conversion kit

NB! Model specific front mount adapter also required to install the bucket kit, adapter not included in this kit and needs to be ordered separately

If the mounting adapter specs states you need a "narrow mount" or the "UTV / SSV" push tube instead - then please note this when ordering, so the push tubes 20.6200 included in this kit could be replaced with push tubes 20.6400 or 20.7400

Simple installation - easy on / easy off.
Special ball-lock quick-connect pins to change the tool in between plow and bucket setup.

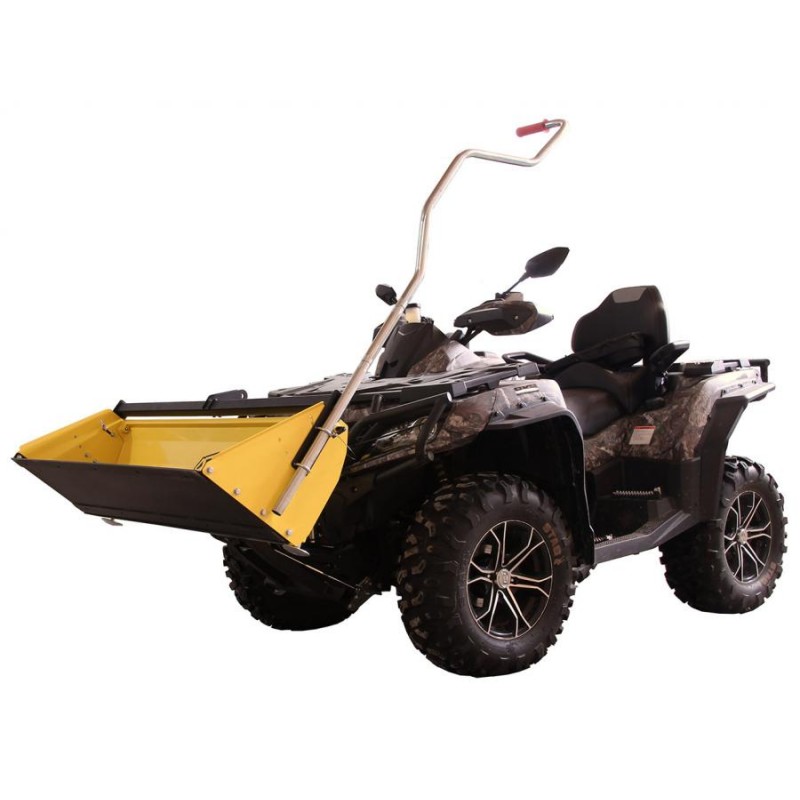

Loading / unloading (up / down movement) by ATV winch.

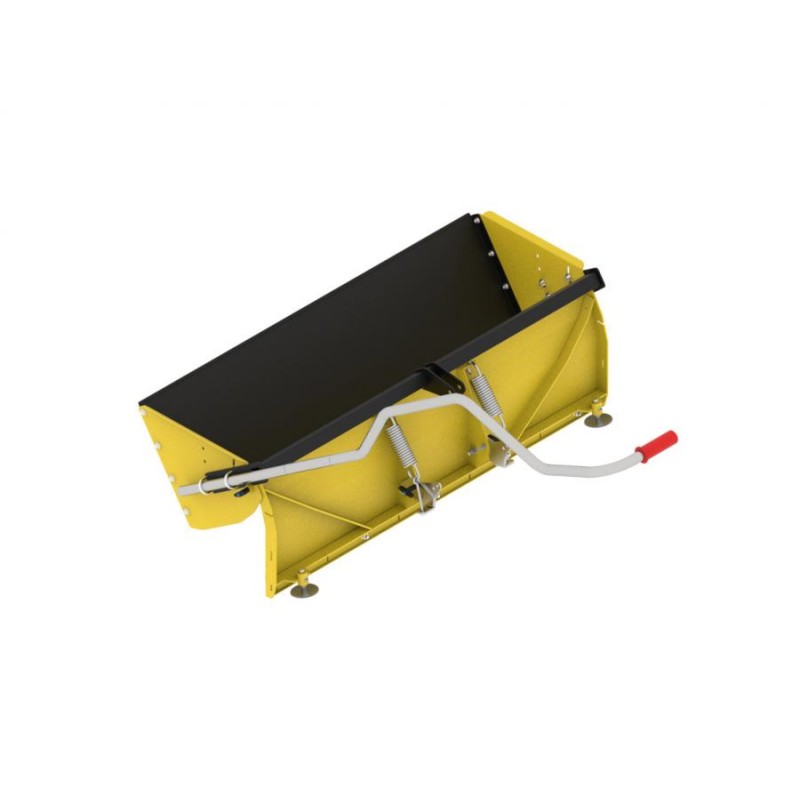

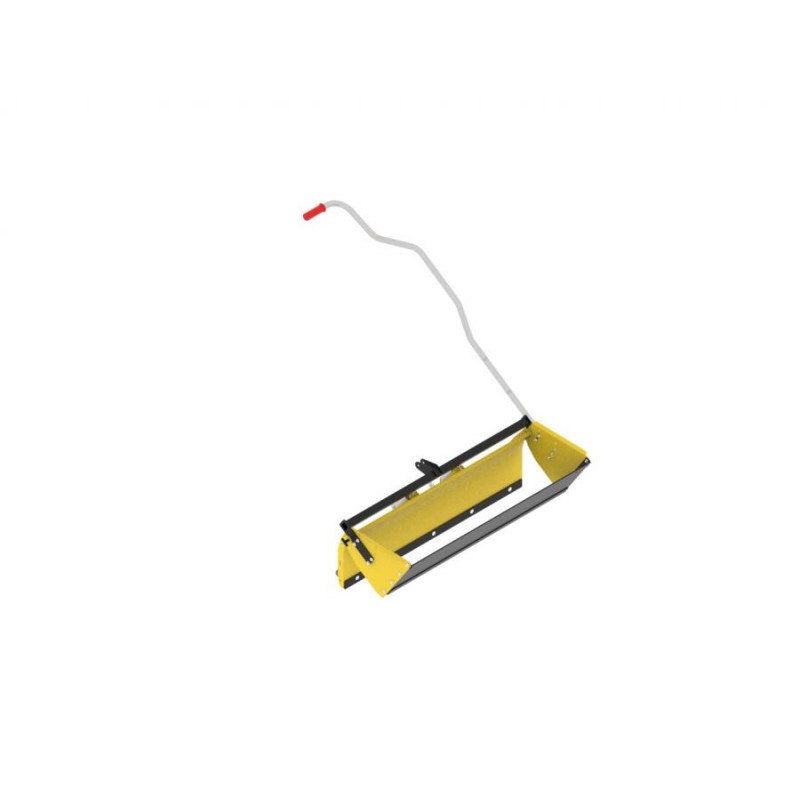

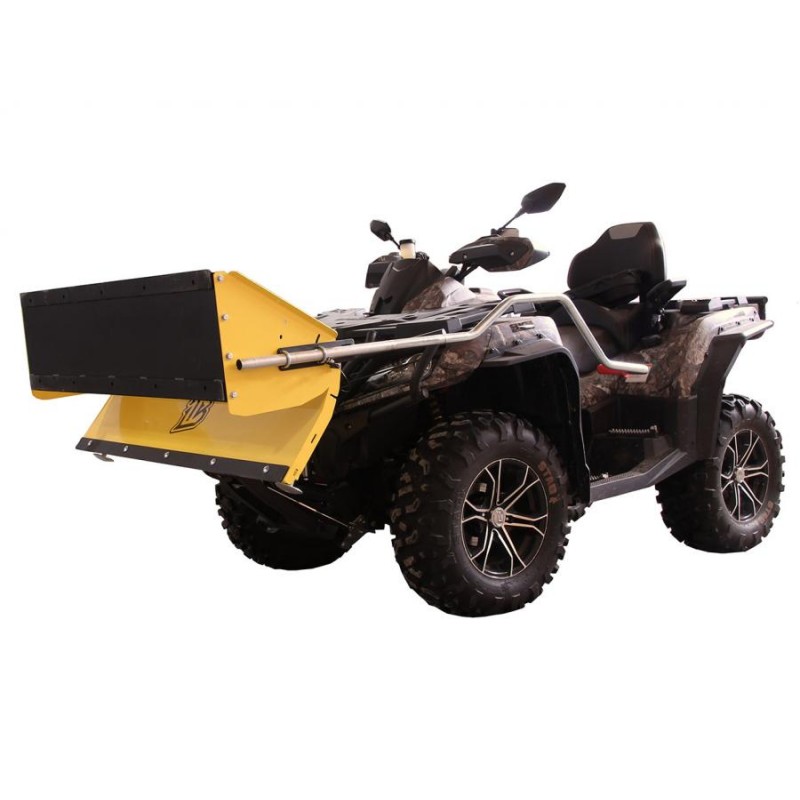

Bucket dump release is operable from the driver´s seat with adjustable lever.
The working angle and length of the bucket dump lever are adjustable to match the vehicle where fitted.
Additionally available are plow extensions, rubber lip and the hydraulic lift and dump options.
Product comes with user manual and installation guide.
