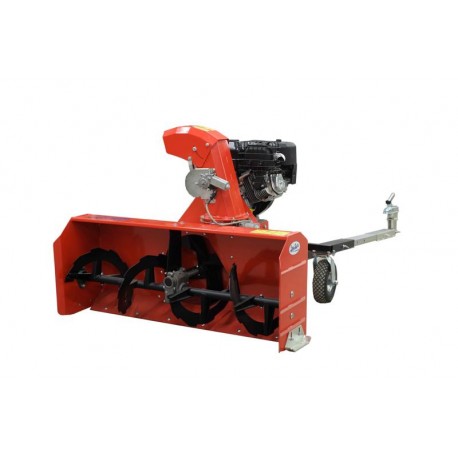

ATV SNOW BLOWER 1250 mm

 Working width:
1250 x 500 mm
Engine:
Briggs & Stratton 14hp B&S 2100 seria
Product dimensions:
1250 x 1000 x 2500 mm
Packed dimensions:
1430 x 1250 x 1165 mm
An ATV front mounted winch (min 1500lbs) and rear hitch-ball needed for installing the snow blower!

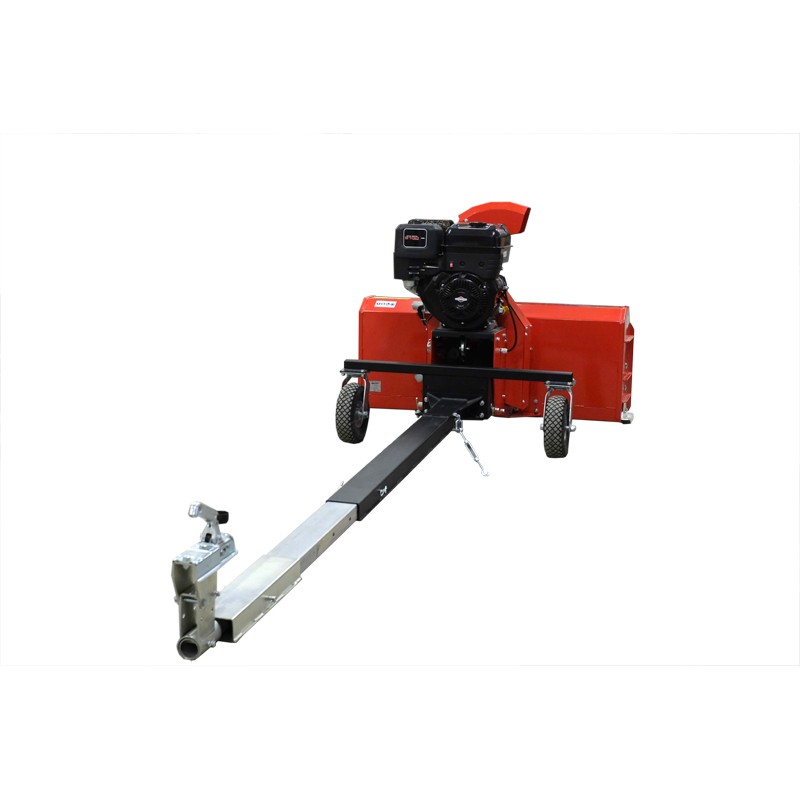

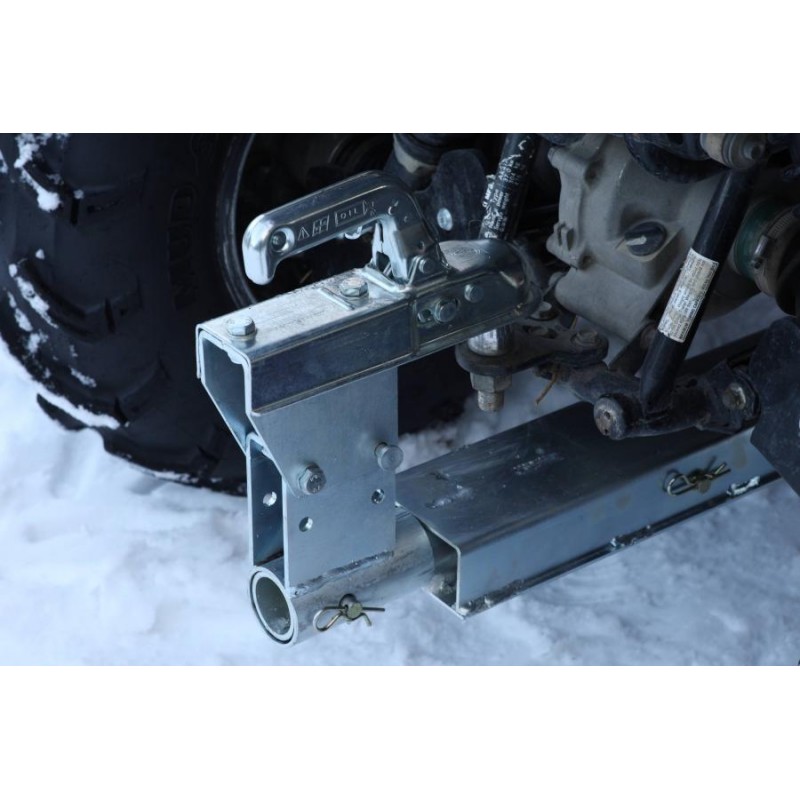

Universal telescopic adjustable, strong square tube push frame allows installation to most 4x4 ATV machines. The push frame is fixed to the rear hitch ball and with the adjustable chains to the ATV front arms. Installation takes 5-10 minutes.
360 degrees rotating wheel carriers with 4” wheels to carry the weight of the snow blower. An ATV is used only to push the machine.

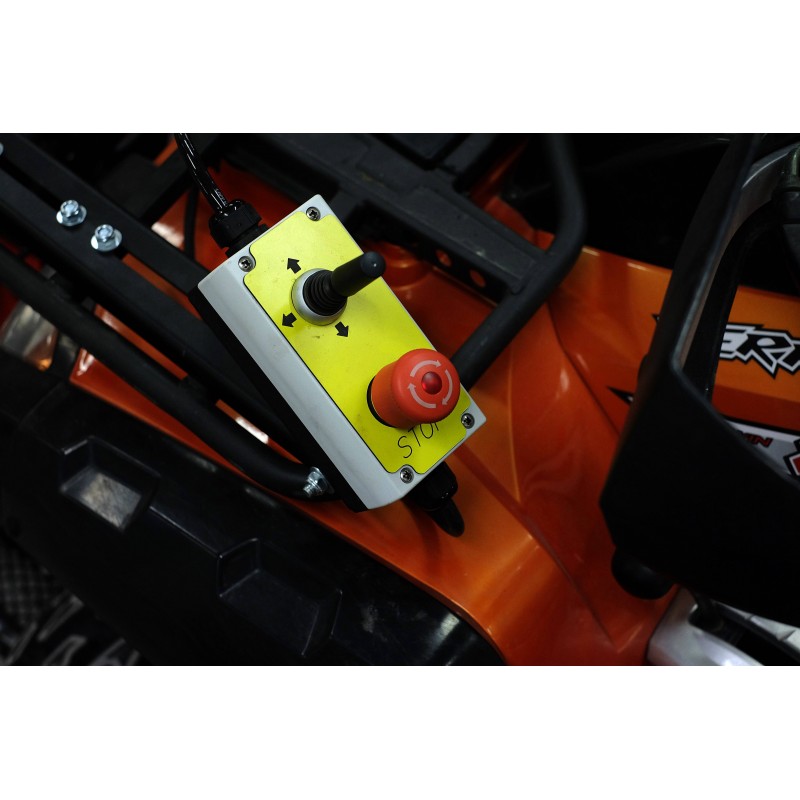

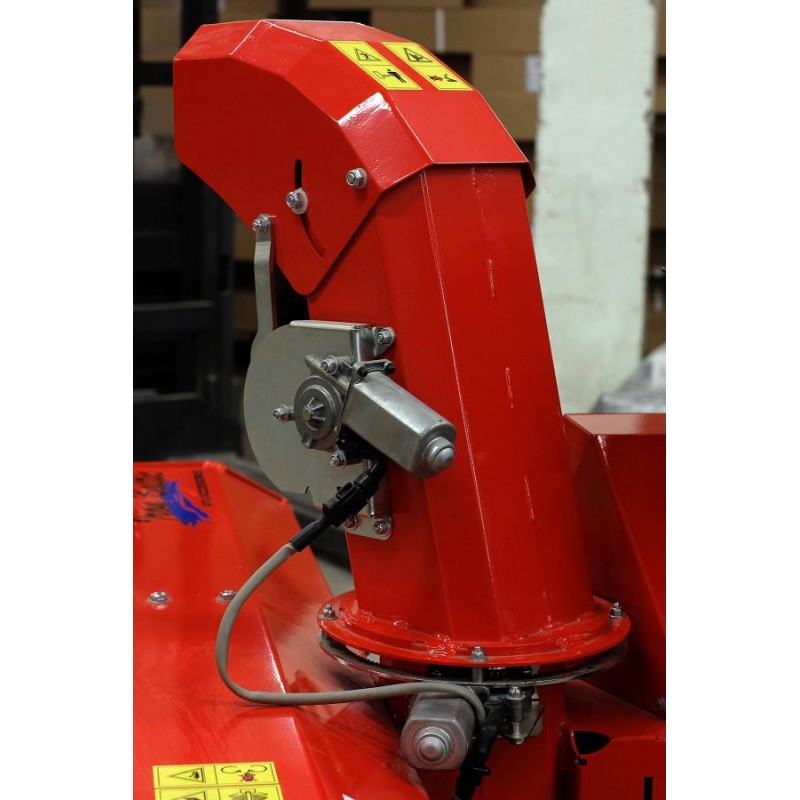

Control panel for ejection tube movement with stop button to shut off the blower engine.
Working position and transportation position (set with ATV winch).
Easy to use belt tensioner, fast removal and installation of the clutch belt, if needed.

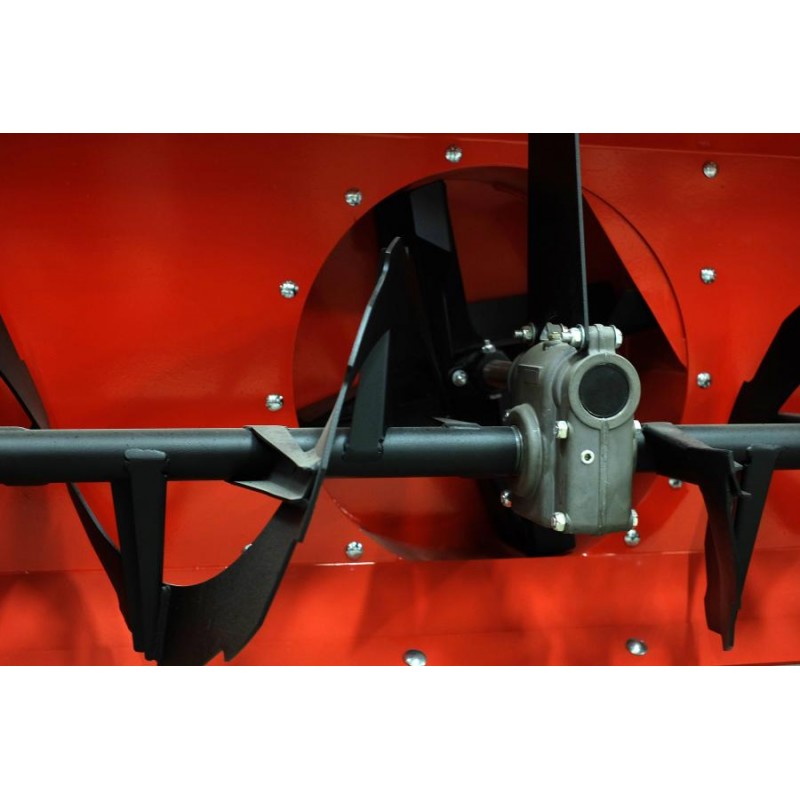

Protective shaft bolts against excess load in rotor shaft movment.
Comes with installation and user manuals.
