Skid Plate Full Kit Aluminium Alloy CanAm Outlander 1000 Max XMR 2013-2016

Skid Plate Full Kit Aluminium Alloy CanAm Outlander 1000 Max XMR 2013-2016

CanAm G2 Outlander MAX 500 (2013-2016)
CanAm G2 Outlander MAX 570 (2013-2016)
CanAm G2 Outlander MAX 650 (2013-2016)
CanAm G2 Outlander MAX 800 (2013-2016)
CanAm G2 Outlander MAX 850 (2013-2016)
CanAm G2 Outlander MAX 1000 (2013-2016)
CanAm G2 Outlander X MR 1000 (2013-2016)

Material
Corrosion resistant, brushed aluminium alloy
Thickness
4 mm
Key features

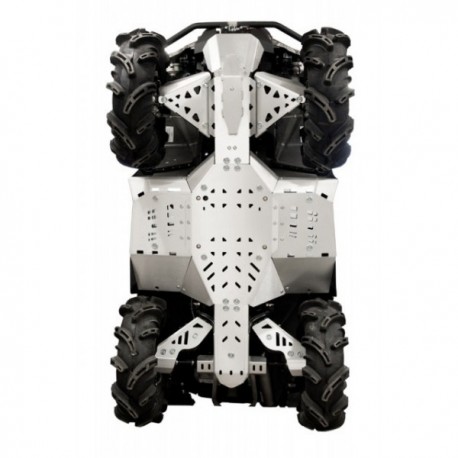

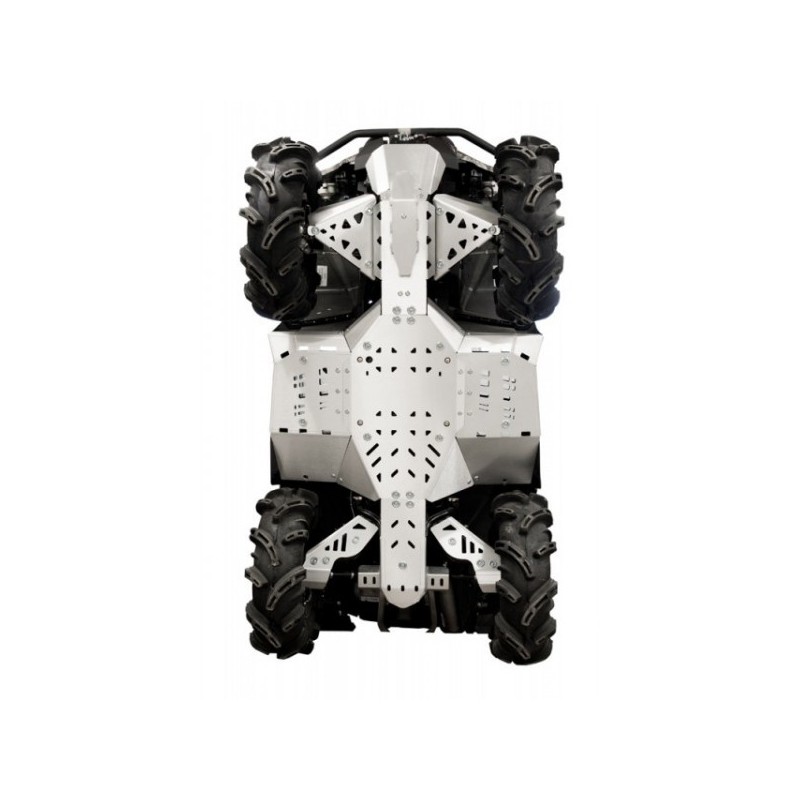

Protects the whole bottom and front part of the chassis and front & rear A-arms.

Designed and constructed for best possible protection and to keep the maximum ground clearance, skid plate follows the frame / bodyshape best possible way, achieved by total 54 bends (with computer controlled angles) and total 300 cm long high quality TIG welding seams.

Additional, welded front part reinforcement plate

Rib shaped holes for easier washing and mud draining.
Holes on footwell / footrest area follows the oem plastics pattern.

Fastening bolts and special protective sinked washers ensuring the repeated assembly when needed, making the servicing of the machine easier and faster.

Holes for oil changing.

Holes for snow plow mounting kit.

Fastening/assembly parts and detailed fitting instruction are enclosed
