ATV SSV Log Hauler-Rear Support Part-Electric Winch

ATV SSV Log Hauler-Rear Support Part-Electric Winch

 Material
 Galvanized / powdercoated red
 Dimensions

 Lenght 1700mm x width 1200mm x height 1300mm (front part)
 Lenght 1400mm x width 1100mm x height 800mm (rear part)
 Packed dimensions
Lenght 1850mm x width 1200mm x height 560mm (1,25 cbm) - front
Lenght 1200mm x width 800mm x height 660mm (0,63 cbm) - rear
 Tyres
 offroad, 22 x 11 - 8
 Weight
 100 kg
 Load capacity
 500 kg

 Additional info

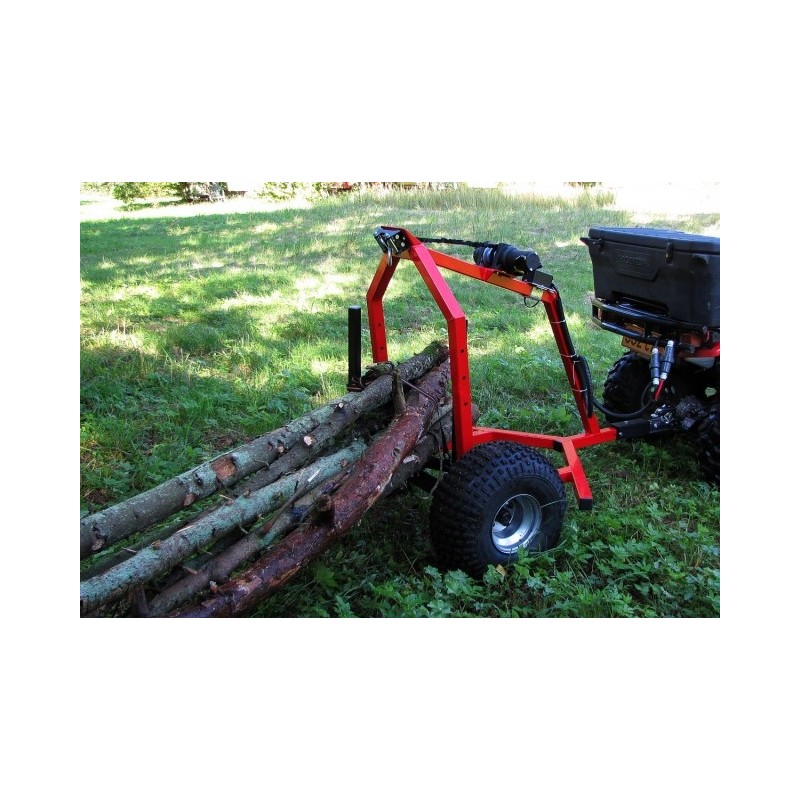

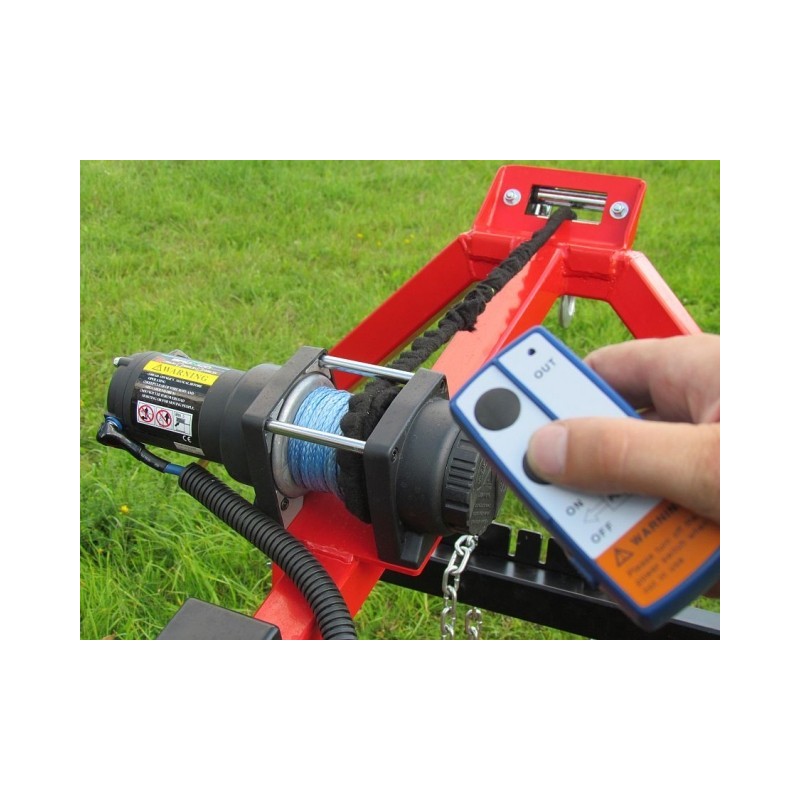

Includes electric ATV winch for pulling the logs out of the woods (winch is Bronco GEN II, 1134kg, rope lenght 15m)

Hang / tie system to carry a larger logs, turnable lower frame to carry lighter timber wood.

Tie down chain and rope to fix the logs on to the hauler frame

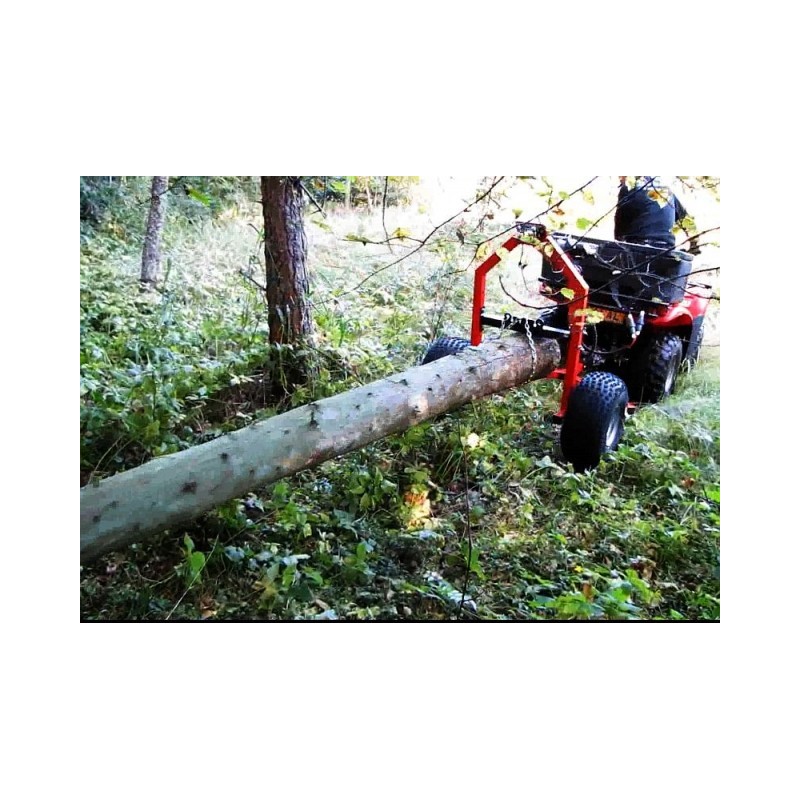

Using the rear support by rear axle & wheels allows to pull the logs out without damaging the forest and also keeping the logs clean.

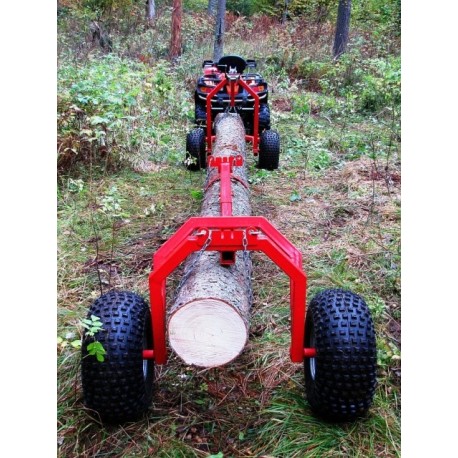

Rear support is constructed to lift and carry the narrow end of the log transported (thicker end lifted by the front support).

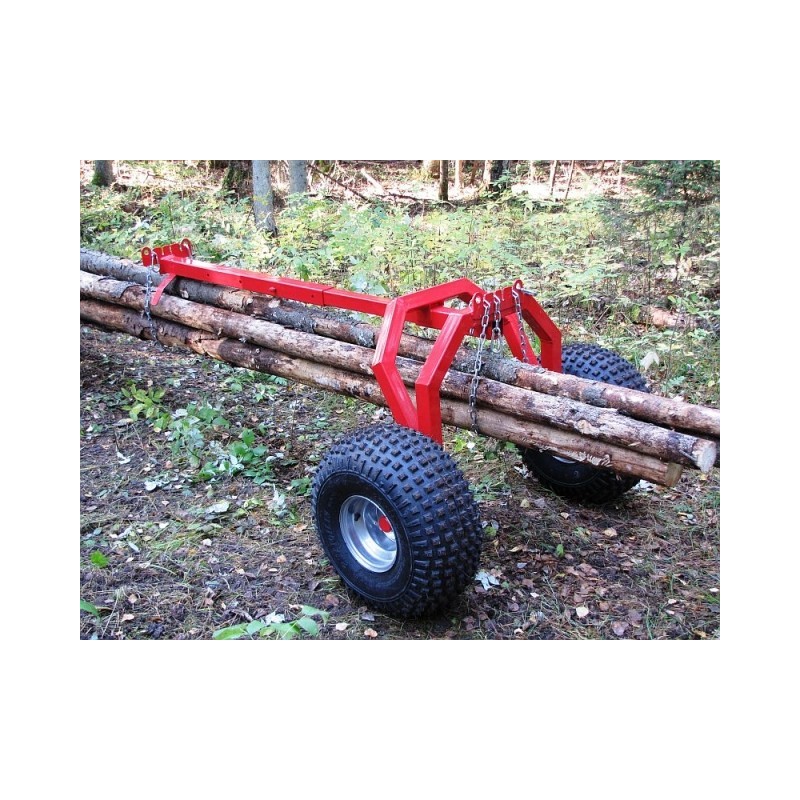

Rear support is equipped with the log hanging system with chains and telescopic "turn-over" construction to lift and carry the logs.

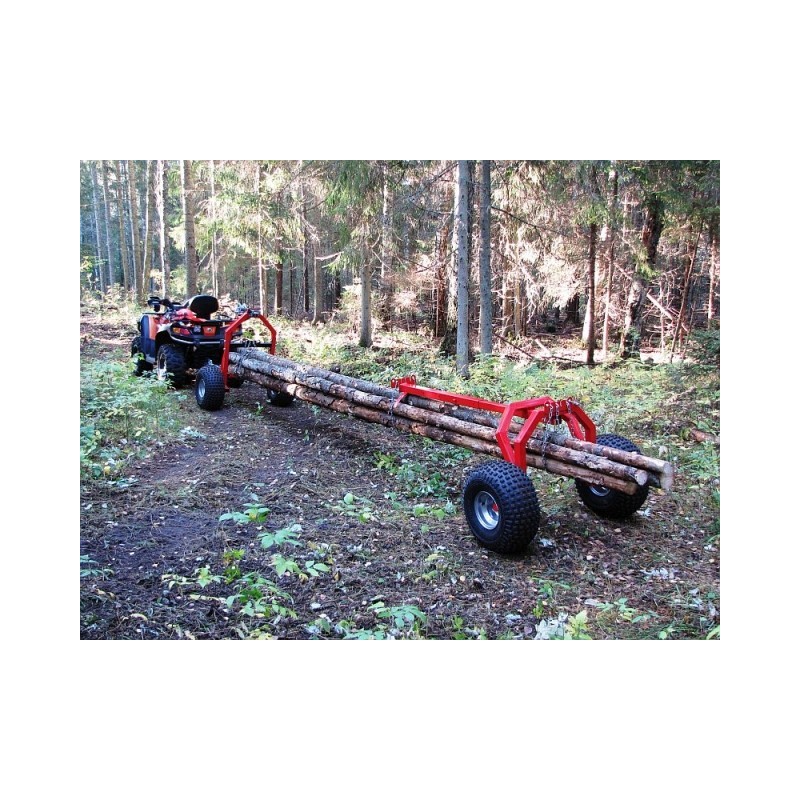

Log hauler can be used in tight areas where driving with the big tractor is impossible.

Safety- and user manual included.
