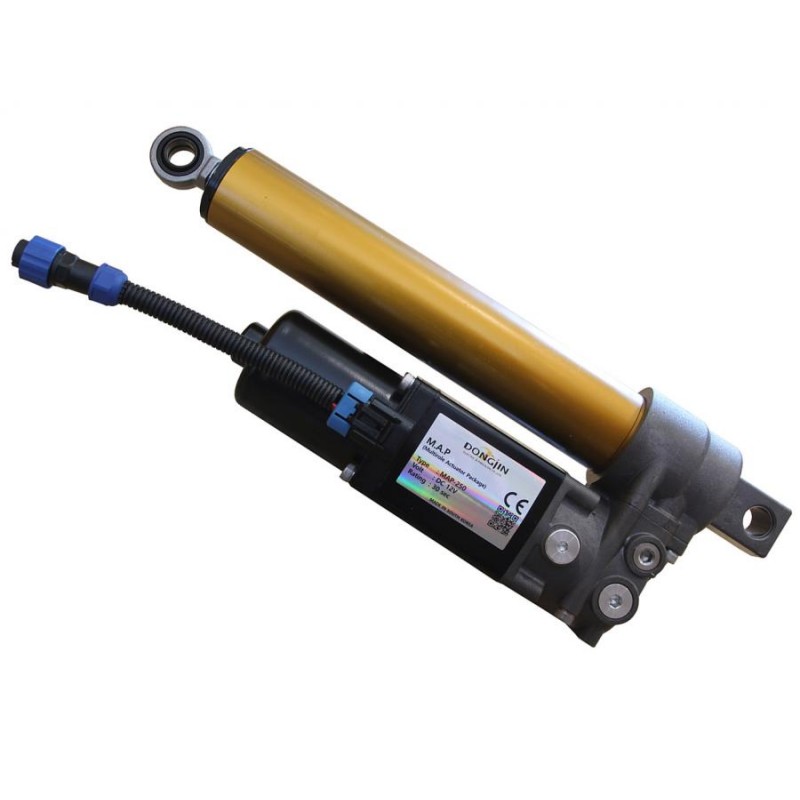

Electric Hydraulic Actuator

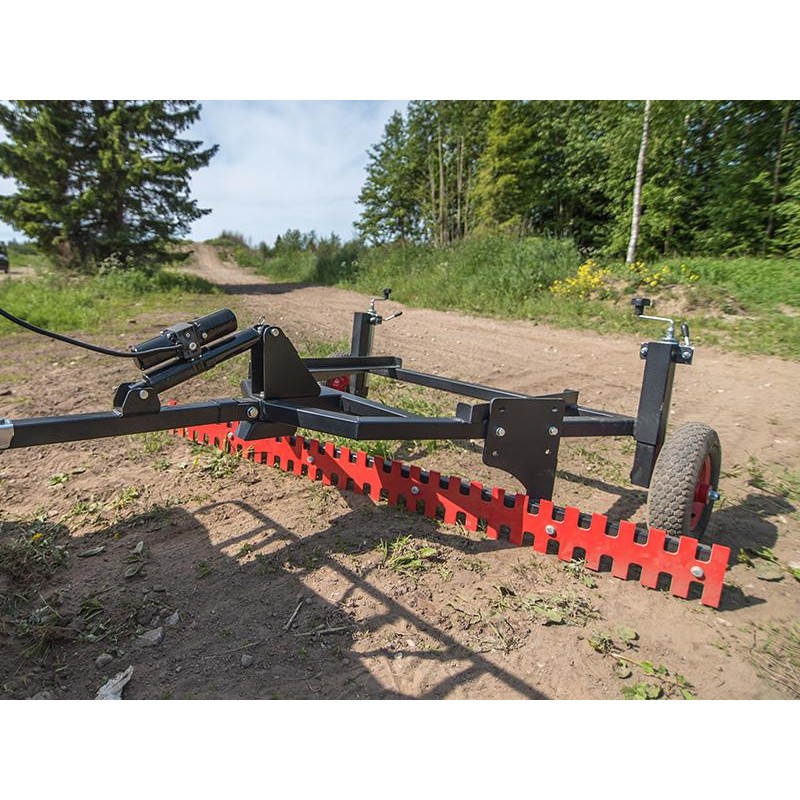

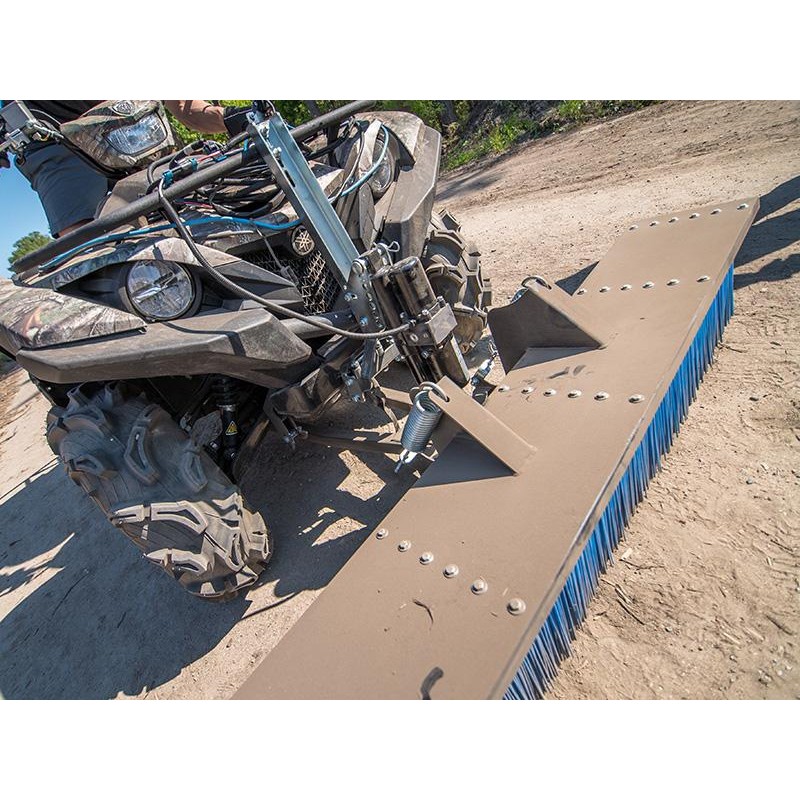

An electric over hydraulic linear actuator featuring an electric DC motor integrated with hydraulic valves, pump and cylinder in a compact package which fits for different kind of ATV / UTV implements for desired motion or switching in between working and transportation positions. One actuator fits different implements and can be moved from one to another easily. Electric power required (12V DC) can be supplied from the power source of the ATV / UTV.

Wiring harness & switch kit, part number 70.2500 required for installation.

Product is made in Korea.

Capacity 1800lbs
Gap in between mounting eyes 380 - 630 mm
Stroke 250 mm
Cylinder rod diameter 20 mm
Mounting eye diameter Ø 5/8'
Power supply 12 VDC
