Mini Motion Package for ATV UTV

Mini Motion Package for ATV UTV

Capacity:
    1800 lbs - 820 Kg

Product dimensions:

80 x 136 x 420 mm

Packed dimensions:

100 x 250 x 450 mm

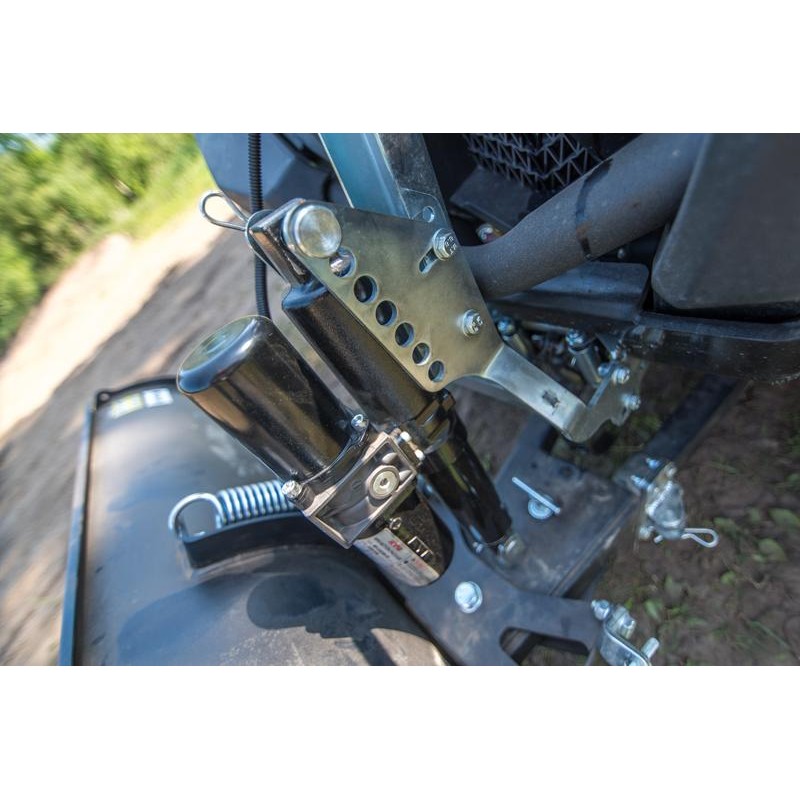

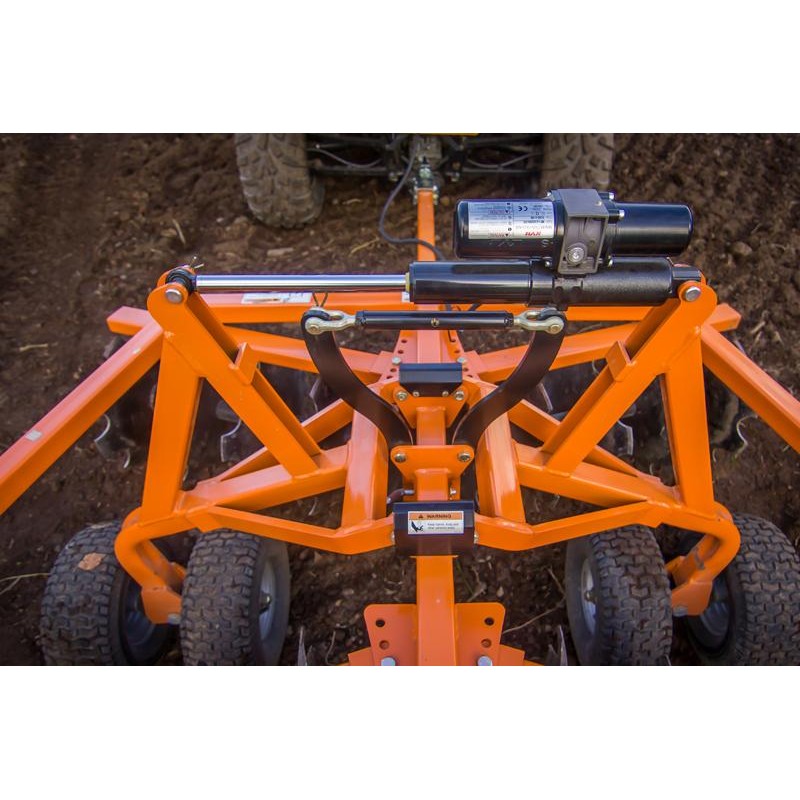

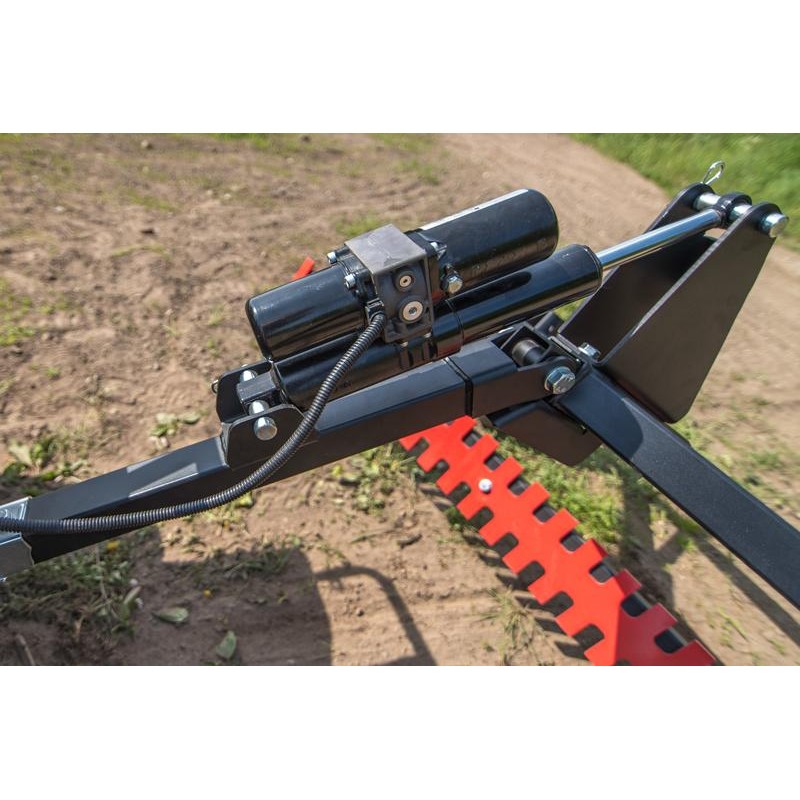

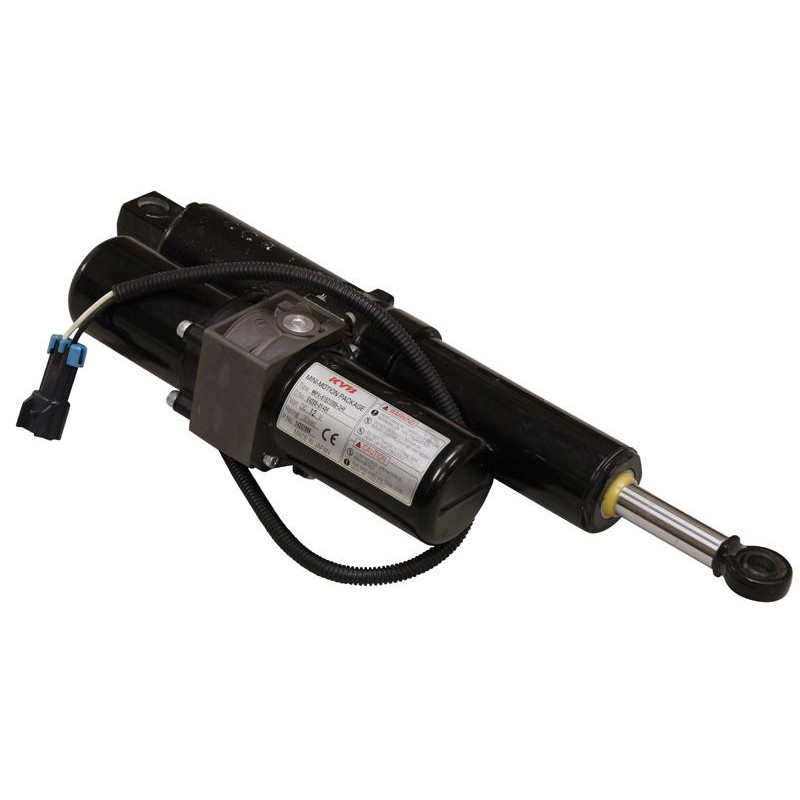

An electric over hydraulic linear actuator featuring an electric DC motor integrated with hydraulic valves, pump and cylinder in a compact package which fits for different kind of ATV / UTV implements for desired motion or switching in between working and transportation positions. One actuator fits different implements and can be moved from one to another easily. Electric power required (12V DC) can be supplied from the power source of the ATV / UTV.

Wiring harness & switch kit, part number 70.2000 required for installation

Wiring Harness & Switch Kit for Mini Motion Package

Gap in between mounting eyes 380 - 630 mm
Stroke 250 mm
Cylinder rod diameter 20 mm
Mounting eye diameter Ø 5/8
Power supply 12 VDC
