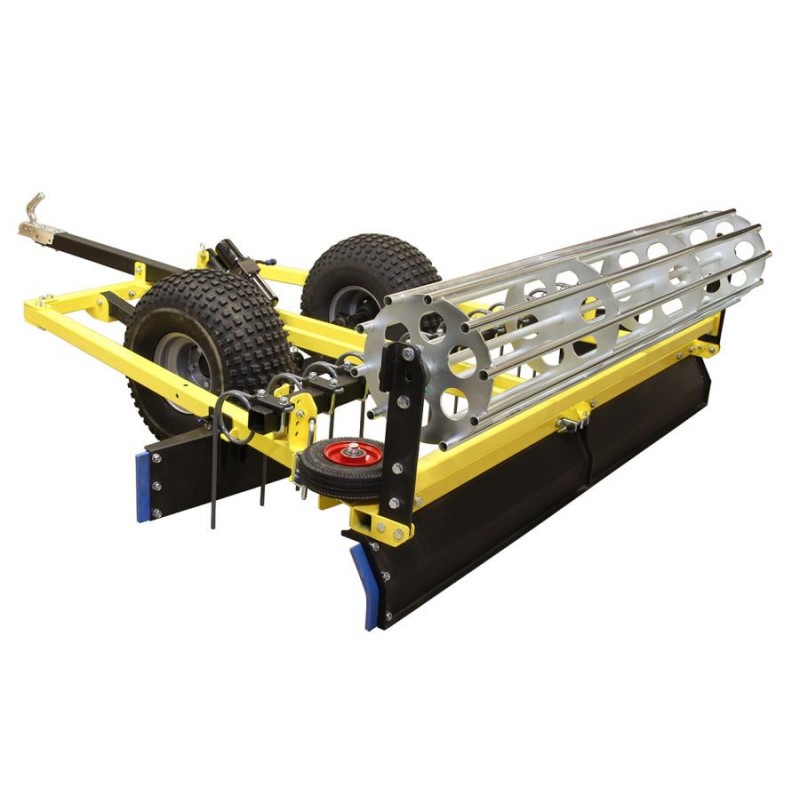

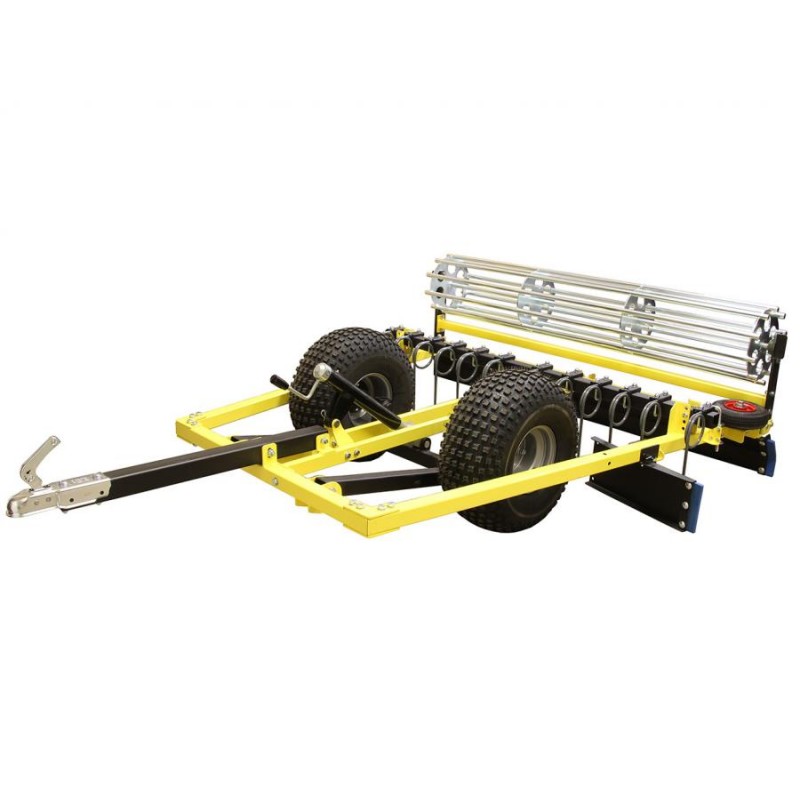

Riding Arena Leveler Groomer ATV SSV UTV

Riding Arena Leveler Groomer ATV SSV UTV

Material:Steel
Surface:Galvanized / powder coated
Working width:1850 mm
Tyres:22 x 11 - 8'
Weight:192.5 kg
Product dimensions:2900 x 1850 x 825 mm
Packed dimensions:1870 x 860 x 510 mm.

Strong steel structure. Galvanized or powder coat finish
Hitch coupler for 50 mm towball.
Adjustable height of the plow.
Adjustable angle of the plows.
Adjustable perimeter wheel.
Adjustable working height spring spikes (tines) for surface hoeing
The finishing roller compacts the soil, giving it a lovely, polished look.

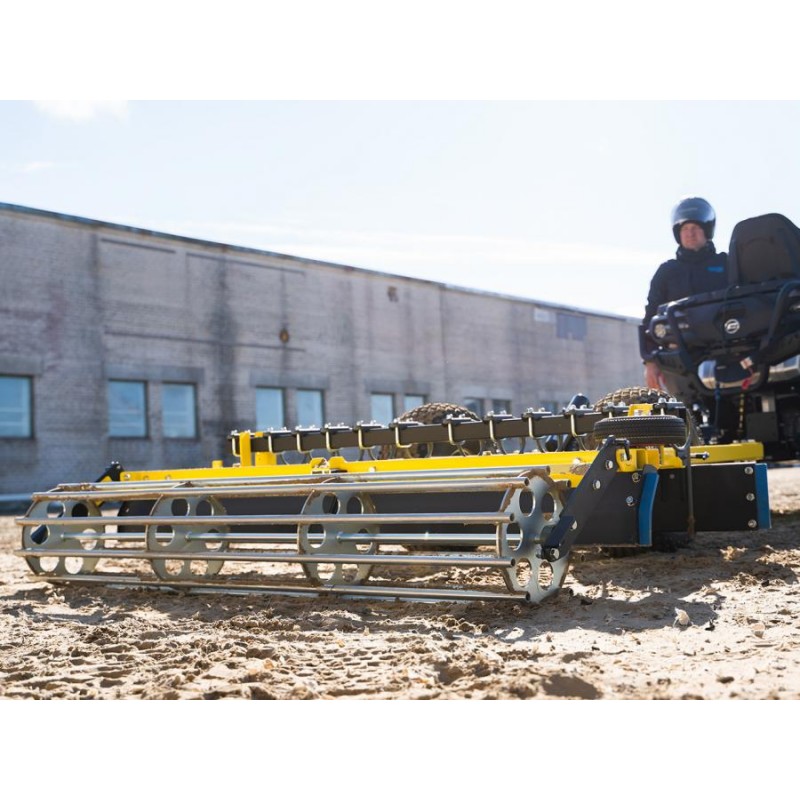

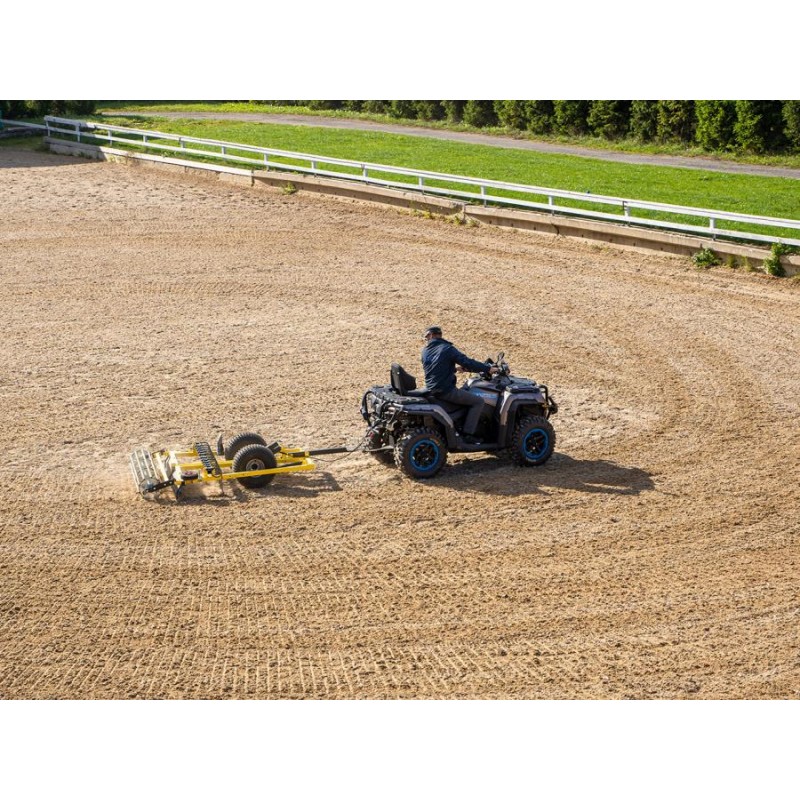

The riding arena plow & drag / groomer is for leveling and hoeing riding areas.

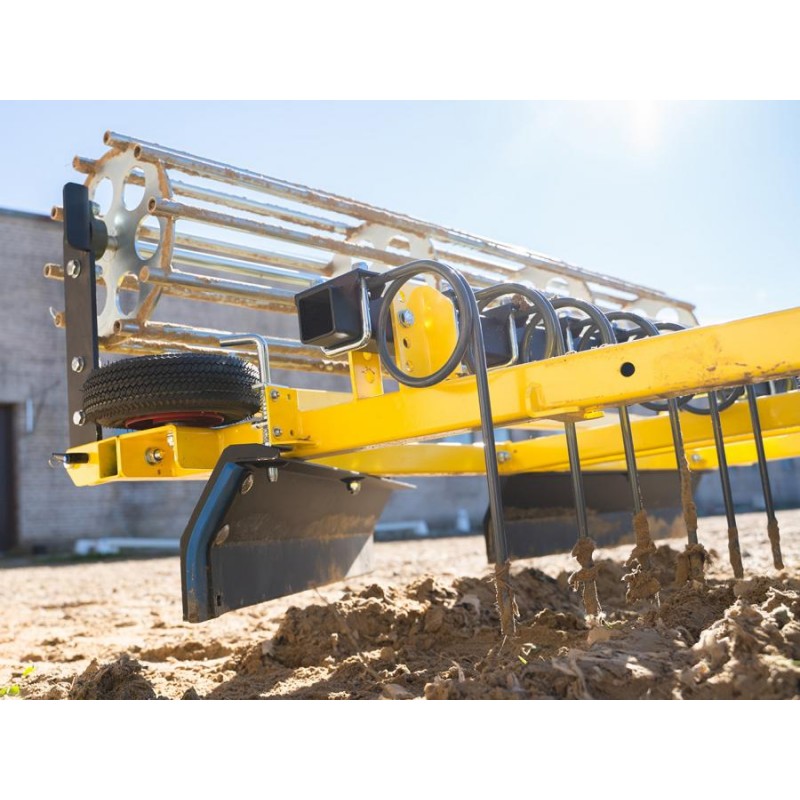

The plow has spring spikes / tines with an adjustable working height for surface hoeing.

Adjusting the working angle of the side- and rear plow blades allows for the surface at the edges of the riding arena to be shifted back to the middle.

There are rubber edges and an adjustable perimeter wheel to protect the walls of a riding arena.

The finishing roller compacts the soil, giving it a lovely, polished look.

The riding arena leveler can be towed by all vehicles equipped with a 50 mm/2” ball hitch unit and with a towing eyelet (22. 050S) installed as an optional accessory. The trailer can also be towed by hitching it to other vehicles equipped with a coupling device.

Setting the transportation position and operating depth is done with a manual lifting mechanism (included)
